Zinc Plating in Texas (ASTM B633)

Zinc Plating Services (ASTM B633)

Electroplated zinc is the workhorse of corrosion protection on steel. It is sacrificial — zinc corrodes preferentially to protect the base metal even at scratches and cut edges — inexpensive, and fast to apply in rack or barrel. Gleco plates zinc to ASTM B633 with clear, yellow, and black trivalent passivates at our AS9100D and ISO 9001:2015 certified, ITAR Registered plants in Rowlett and McAllen, Texas.

AS9100D

ISO 9001:2015

ITAR Registered

Rowlett & McAllen, TX

📍 Available at: Rowlett, TX (Dallas–Fort Worth) & McAllen, TX (Rio Grande Valley)

Zinc Plating Specifications (ASTM B633)

Governing spec	ASTM B633 (current revision)
Service condition & thickness	SC 1 (mild) — Fe/Zn 5, 5 µm (0.0002 in); SC 2 (moderate) — Fe/Zn 8, 8 µm (0.0003 in); SC 3 (severe) — Fe/Zn 12, 12 µm (0.0005 in); SC 4 (very severe) — Fe/Zn 25, 25 µm (0.0010 in)
Finish types	Type I as-plated; Type II colored (iridescent) chromate; Type III colorless chromate; Type IV phosphate (paint base); Type V colorless trivalent passivate; Type VI colored trivalent passivate
Salt spray (ASTM B117)	Type II ≥ 96 h to white corrosion; Type III ≥ 12 h to white corrosion (hours to red rust scale with zinc thickness)
Chromate colors	Clear, yellow/iridescent, black
RoHS	Types V and VI are the RoHS-compatible trivalent passivates. Types II and III are chromates and are hexavalent.
Typical callout	“Zinc plate per ASTM B633, Fe/Zn 8, Type II, SC 2”
Typical uses	Fasteners, brackets, stampings, hydraulic fittings, general industrial hardware

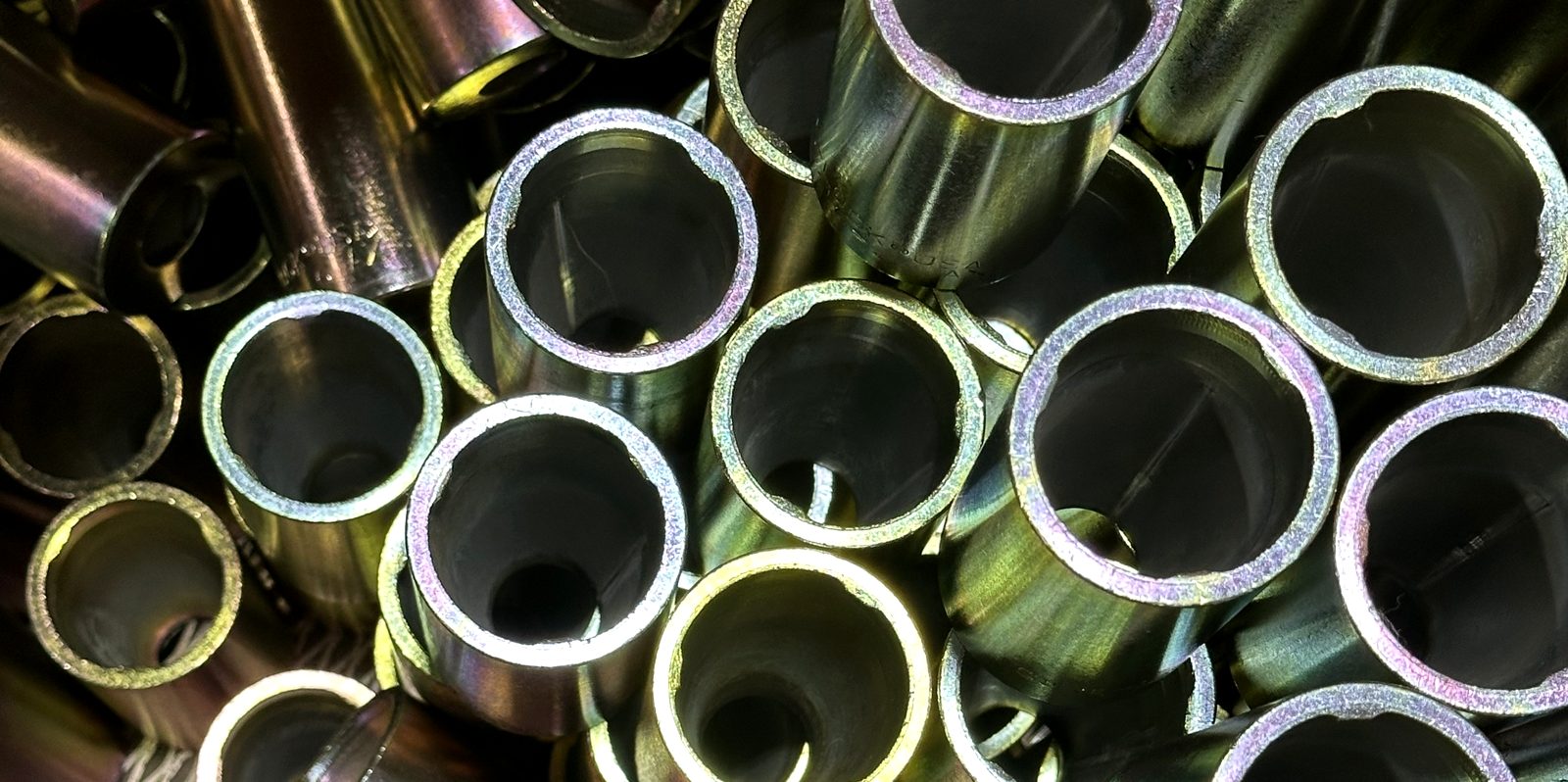

Zinc-plated steel tubing finished with a yellow iridescent chromate — Zinc-plated steel tube finished with a yellow iridescent chromate, plated on our Rowlett zinc line. Color comes from the chromate conversion coating, not the zinc itself.

Which Zinc Process Is Right for Your Part?

Rack & Barrel Capacity

We run both rack and barrel zinc lines — barrel for high-volume small parts, rack for larger or more delicate work — with parts handled up to 120 in. x 36 in. x 72 in. on our zinc line. Bath chemistry is analyzed and controlled daily by our in-house chemists, and every operator is certified through Gleco University.

FAQ

Zinc Plating FAQ

What salt spray life does zinc plating achieve?

It depends on thickness and chromate. Per ASTM B633, a colored (Type II) chromate must reach 96 hours to white corrosion and a colorless (Type III) chromate 12 hours; red-rust life then scales with zinc thickness (SC1–SC4). When you need substantially more corrosion life, zinc-nickel is the step up.

What is the difference between clear and yellow zinc chromate?

Clear (colorless) chromate is a brighter, more cosmetic finish with lower corrosion protection; yellow/iridescent chromate provides higher salt-spray performance. We offer clear, yellow, and black finishes in RoHS-compliant trivalent passivate chemistry, with hexavalent only where a legacy specification requires it.

Rack or barrel zinc plating — which do I need?

Barrel plating is best for high volumes of small parts like fasteners and stampings; rack plating suits larger, heavier, or more delicate parts that need controlled contact and consistent thickness. We run both at each plant.

Is your zinc plating RoHS compliant?

Yes. Our clear, yellow and black finishes are trivalent passivates, which under ASTM B633 are Type V (colorless) and Type VI (colored). The standard reserves the word “passivate” for films that contain no hexavalent chromium — Types II and III are chromates and are hexavalent, and we run those only when a controlling drawing or specification calls for them. If your print says RoHS, write Type V or Type VI on it rather than Type III.

Do you bake for hydrogen embrittlement relief?

Yes. Post-plate embrittlement relief baking is performed per the governing specification for high-strength steels, with bake start time and duration documented in the job traveler.

Get a Zinc Plating Quote

Send your drawing, service condition, and chromate type and we will confirm the spec and quote it. Request a quote →
